Cuplock Transom for Platform Support in Cuplock Scaffolding
Cuplock transom is the cross-support member that helps hold planks and stabilize working bays in cuplock scaffolding. It improves platform support, strengthens bay structure, and gives modular scaffolding layouts more reliable performance on construction and industrial projects.
- Before Quotation, Please Confirm
- Product name or drawing
- Required size or specification
- Quantity or container plan
- Surface finish and packing requirement
- Destination country or port

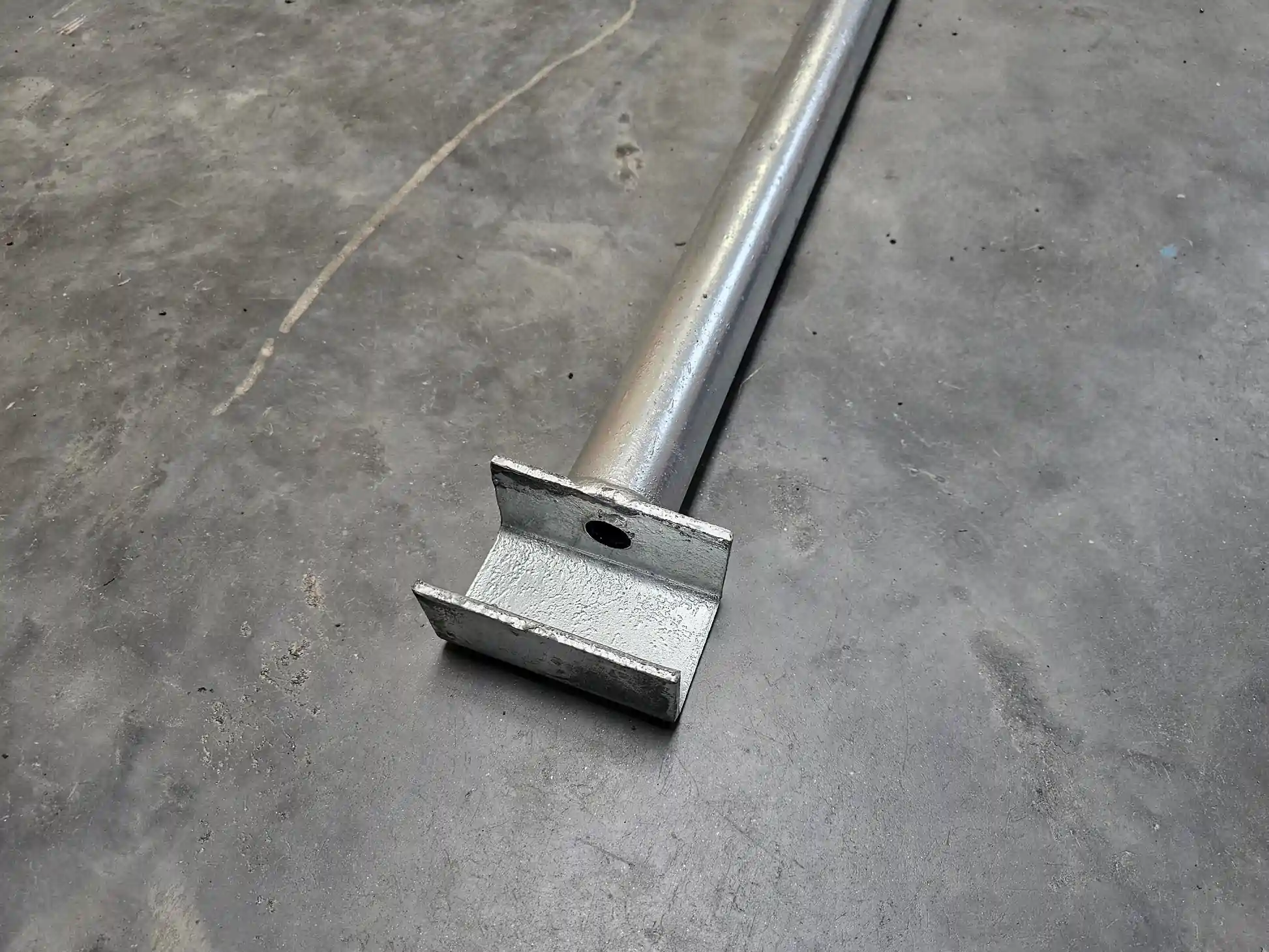

Cuplock Transom for Scaffolding Systems
Cuplock Intermediate Transom for Platform Stability
The cuplock transoms support scaffold planks between ledgers, being used in each working bay. Users also look for this item as a cuplock intermediate transom when they want additional internal support for platform decking and distribute loads more effectively.
Size Options for Different Bay Layouts
To accommodate various platform configurations, Huilai offers this product in several useful lengths. The standard sizes of cuplock omega transom widely used are 1.20 m, 1.30 m, 1.80 m, and 2.50 m. These options allow project teams to select the appropriate support span for deck layout, loading requirements, and daily handling needs within fully formed scaffolding systems.
Finish Choices with Clear Weight Reference
To support different procurement needs, we offer self-finished and hot dipped galvanized options. The 1.20 m model weighs 5.96 kg in self-finish and 6.32 kg in HDG. The 1.30 m size weighs 6.32 kg and 6.70 kg, the 1.80 m size weighs 8.10 kg and 8.59 kg, and the 2.50 m size weighs 10.66 kg and 11.30 kg.
Factory Supply for Cuplock Scaffolding Projects
Huilai, as a professional scaffolding factory, serves importers, distributors, and contractors needing one-stop scaffolding solutions. Our cuplock transom products can be interchanged with verticals, ledgers & other components. We invite our customers to visit all the pages, such as scaffolding, scaffolding systems, and Cuplock scaffolding, and send us your inquiry.
Cuplock Transom Data Sheet
| Length (m) | Self Finish Weight (kg) | Hot Dipped Galvanized Weight (kg) |
|---|---|---|
| 1.20 | 5.96 | 6.32 |
| 1.30 | 6.32 | 6.70 |
| 1.80 | 8.10 | 8.59 |
| 2.50 | 10.66 | 11.30 |
PACKING & SHIPPING
Packaging and Shipping for Export Orders
For export scaffold orders, packing is arranged according to product type, quantity, surface finish, loading method, and buyer requirements.
Huilai Scaffolding can support bulk packing, pallet packing, shipping marks, and order checks before loading.
01
Bulk Export Packing
Packing can be arranged by bundle, pallet, carton, or carton with pallet according to product size, quantity, and container loading plan.
02
Packing Mark Support
Labels, item marks, and shipping marks can be arranged according to buyer reference, product type, quantity, and warehouse needs.
03
Order Check Before Shipment
Product name, quantity, surface finish, packing method, marks, and buyer reference can be checked against the order details before shipment.
04
Container Loading Plan
Packing and loading can be arranged according to product size, order quantity, weight, and available container space.
Need a Custom Solution?
Send your product name, drawing or sample photo, required quantity, surface finish, and destination country.
Huilai Scaffolding will check the details and reply with a project-based quotation.
PRODUCT RANGE
Explore More Scaffolding Products from Huilai
Browse Huilai scaffolding systems, scaffold parts, safety access components, formwork accessories, and shoring products
for contractors, rental companies, distributors, and infrastructure projects worldwide.
MORE APPLICATIONS
Find Scaffolding Solutions by Application
Different jobsites may need different scaffold systems, access methods, platform layouts, and component lists. Use these application pages to compare how Huilai scaffolding products are used in construction, facade access, industrial maintenance, oil and gas, power plant, bridge, and infrastructure projects.
Facade Scaffolding
For exterior walls, cladding, painting, and curtain wall work.
Industrial Scaffolding
For plants, tanks, pipes, equipment areas, and andmaintenance work.
Bridge & Infrastructure Scaffolding
For bridges, viaducts, tunnels, public works, and civil projects.
Power Plant Scaffolding
For boilers, turbines, cooling towers, and outage maintenance.
Oil & Gas Scaffolding
For refineries, pipe racks. tanks, and shutdown work.
Construction Scaffolding
For building work, masonry, concrete access, and general platforms.
From Components to Systems
Integrated Production for the Entire Scaffolding Range
From precision-engineered components to integrated systems, our state-of-the-art production lines deliver
the full spectrum of scaffolding solutions with uncompromised industrial standards.
PRODUCT FAQ
FAQ for Scaffold Product Buyers
These answers are based on the product details, common RFQ questions, and export order requirements.
Final dimensions, finish, packing, and delivery terms should be confirmed before quotation.
What is a Cuplock transom used for?
A cuplock transom supports scaffold boards, steel planks, or battens across a working platform.
Is a Cuplock transom the same as a ledger?
Not exactly. Ledgers set the bay length, while transoms support the platform width and boards.
When should intermediate transoms be used?
Use intermediate transoms when scaffold boards need extra support across wider bays or working platforms.
Where is a Cuplock transom installed?
It sits between Cuplock ledgers and connects to the Cuplock standard through blade ends.
What is an omega transom in Cuplock scaffolding?
An omega transom has an inverted T or omega profile, giving plain-end boards a better sitting surface.
