frame scaffold side bracket for Mason, Ladder and S-Style Frames

frame scaffold side bracket Factory for Safer Platform Extension

frame scaffold side bracket for wider working access

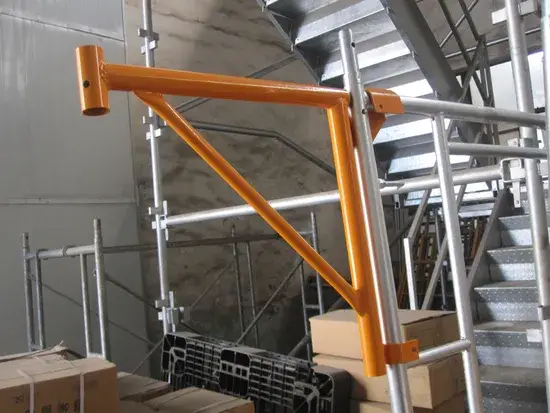

A frame scaffold side bracket is used when the main frame bay does not give enough working room. In real scaffolding work, this happens around walls, façades, blockwork, plastering areas, and maintenance faces.

Instead of rebuilding the whole scaffold line, workers hang a side bracket on the frame. Then, they place a walk board, scaffold plank, aluminum plank, or steel plank on the bracket arm. This gives the crew extra reach outside the main frame.

That small platform extension matters on-site. Workers can stand closer to the work face. Also, tools and materials sit in a cleaner position. As a result, the job feels less awkward than leaning from the main bay.

This bracket is especially useful in frame scaffolding because frame systems are fast to erect but not always flexible in width. A bracket helps the crew adjust the working face without changing the whole layout.

Hook design and frame compatibility

A side bracket must match the frame before it can be useful. This product can be supplied with a saddle hanger, pig ear hook, or frame hook. Each hook style fits a different frame habit.

It can work with mason frames, ladder frames, S-style frames, and C-size frames. However, buyers should confirm the frame tube and rung detail before production. Some frames use a 1.69″ OD tube, while some bracket designs may depend on a 1″ frame rung.

That is why the hook is not just a small shape change. It decides whether the bracket sits tight or feels loose after installation. If the hook does not fit well, workers may still force it on. However, the platform will not feel clean under foot traffic.

For a complete scaffolding system, the side bracket should match the frame, plank width, and guardrail layout together. A good bracket should not create a new problem while solving a platform gap.

Structure, material, and load thinking

This bracket can be made from Q235, Q345, or high-strength structural steel. The structure can use a welded tubular frame, a square tube, or an angle support. Therefore, buyers can match the bracket to cost, load habit, and local market preference.

Common sizes include 20″, 21″, 24″, 30″, 36″, and 40″. Shorter brackets are often used for narrow work access. Larger brackets give more platform width, but they also need better control of bending and frame fit.

Some 20″ steel side bracket listings show a rated load of about 400 lbs. Still, the final load should follow the tested rating, bracket design, and project rules. This is important because load capacity depends on weld quality, tube size, hook design, and plank support.

For contractors, the useful question is not only “how wide is the bracket?” It is also “How does it sit on my frame?” In addition, buyers should check whether the bracket supports the board without twisting or bouncing.

Finish packing and B2B supply details

Surface treatment can be powder coating, painting, galvanizing, or hot-dip galvanizing. Painted and powder-coated finishes work for cost-sensitive stock and color-marked projects. Meanwhile, a hot-dip galvanized finish is better for outdoor storage, humid yards, and rental use.

In export supply, scaffolding parts move through many hands before they reach the job site. Brackets get stacked, loaded, dragged, and sorted with frames, braces, planks, and pins. So, finish quality affects more than appearance.

Packing can be a steel pallet, bundle, or customized packing. For distributors, this matters a lot. Side brackets are not tiny parts, but they still get mixed when several sizes ship together. Clear packing helps warehouse workers separate 20″, 24″, 30″, and 36″ stock faster.

This product also belongs in the wider scaffolding brackets category. However, it should not be sold as a universal bracket without frame checks. Before bulk orders, buyers should confirm size, hook type, tube size, finish, color, marking, and packing method.

For B2B buyers, customization is often the real value. One market may prefer saddle-hanger hooks. Another may need pig ear hooks. Some customers want galvanized stock, while others need painted brackets to match their frame color.

Therefore, the best order starts with a sample check. A sample shows whether the hook sits correctly, whether the plank line feels stable, and whether the finish matches customer expectations. That step saves a lot of trouble before container loading.
