Formwork Wing Nut for Tie Rod Concrete Forming Systems

Formwork Wing Nuts for Wall and Column Tie Rod Assemblies

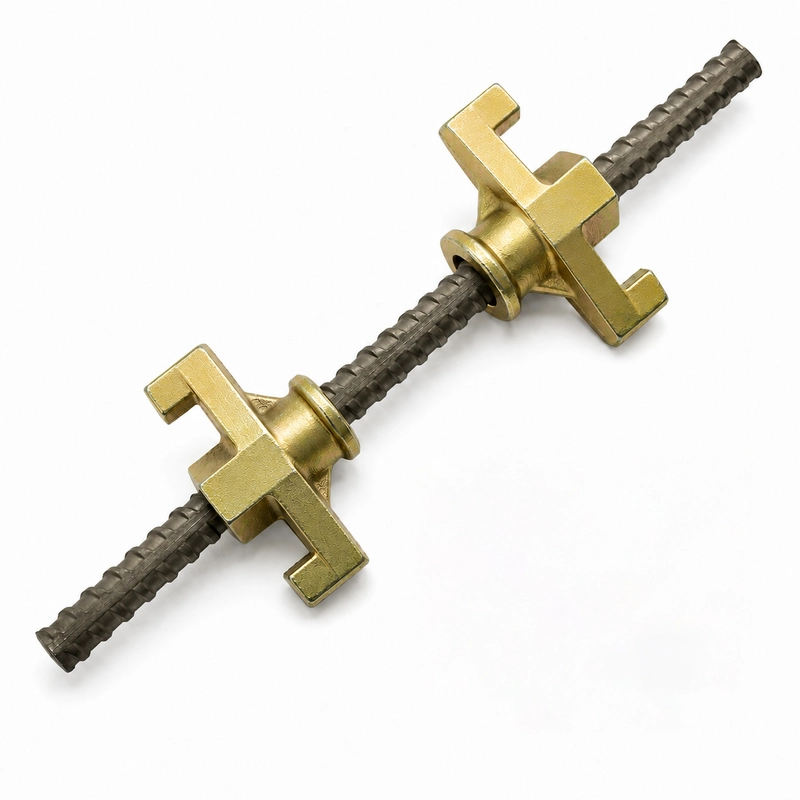

In a tie rod assembly, the wing nut sits outside the formwork panel and works with the plate to hold the connection in place. The nut can be tightened during setup and removed after the formwork is stripped. Within formwork systems, wing nuts are used with tie rods, plates, and other connection parts for wall and column forming. The matching arrangement follows the tie rod system and the formwork structure used on site.

Function of Wing Nut in Tie Rod Assembly

The main purpose of a wing nut is to provide a convenient tightening point on the end of a tie rod. Compared with standard nuts, the wing structure allows manual handling without requiring additional tools for basic adjustment during formwork assembly. A complete connection may include a tie rod, wing nut, plate, and other supporting components depending on the formwork design. In some markets, the same component may also be described as a tie bar wing nut when used within a tie bar system.

Matching Wing Nuts with Tie Rod Systems

Wing nuts should be selected according to the tie rod system used in the project. Products with similar outside shapes may still differ in their connection details, so the existing rod, drawing, or previous product information should be checked before ordering. When replacing existing parts, match the wing nut with the tie rod system already in use. For new formwork projects, provide the tie rod details and required wing nut combination together with the order information.

Applications in Concrete Formwork Construction

Formwork wing nuts are commonly used for wall and column forming where tie rods connect opposite form faces. They work with other components to maintain the required arrangement during concrete placement. The exact accessory combination depends on the selected forming method. Some applications may require additional plates, sleeves, cones, or other connection parts together with the wing nut. For complete formwork solutions, the required components should be selected according to the project drawings and forming structure.

Wing Nut as a Formwork Accessory Component

Wing nuts belong to the wider group of formwork accessories used in concrete forming systems. Related products may include tie rods, anchor components, plates, and other fastening parts. As part of the formwork accessories range, wing nuts are used with matching tie rod systems and related connection parts. These components are commonly included in complete formwork supply requirements for different concrete forming applications.

Information to Confirm Before Ordering

Before ordering formwork wing nuts, confirm the required quantity, tie rod system, and related components needed for the project. Replacement orders should include available drawings, photos, samples, or previous product references whenever possible. The same project may also require other scaffolding, formwork, or shoring products available through the broader HUILAI product range.
